Matsuura H.Plus Series

4 axis multi pallet horizontal machining centre for unmanned operation. Solid and robust rigidity for highly accurate hard metal cutting.



H.Plus-300 FE0 image 1

Matsuura H.Plus-300 Horizontal Machining Centre


  • 4 axis machining
  • High torque, high speed spindle
  • Standard 2 pallets (option of 6 or 11 with Floor or 15 with Tower Pallet)
  • X-500mm, Y-560mm, Z-500mm
  • Rapid traverse rate 60 m/min
  • Loading capacity 250kg
  • 24 month spindle warranty
  • Standard 60 tools (option of up to 520 tools with PC)


Downloads Downloads:
H.Plus-400 FR0 image 2

Matsuura H.Plus-400 Horizontal Machining Centre


  • 4 axis machining
  • High torque, high speed spindle
  • Standard 2 pallets (option of 6 with Floor or 12 with Tower Pallet)
  • X-560mm, Y-640mm, Z-640mm
  • Rapid traverse rate 60 m/min
  • Loading capacity 400kg
  • 24 month spindle warranty
  • Standard 60 tools (option of up to 330 tools with PC)


Downloads Downloads:
H.Plus-405 FF0 image 2

Matsuura H.Plus-405 Horizontal Machining Centre


  • Increased work size over H.Plus-400
  • X-660mm, Y-660mm, Z-660mm
  • Standard 60 tools (option of up to 520 tools with PC)


Downloads Downloads:
H.Plus-504 FT0 image 1
Matsuura H.Plus-504 Horizontal Machining Centre

  • 4 axis machining
  • High torque, high speed spindle
  • Standard 2 pallets (option of 6 with Floor Pallet)
  • X-730mm, Y-730mm, Z-800mm
  • Rapid traverse rate 60 m/min
  • Loading capacity 750kg
  • 24 month spindle warranty
  • Standard 60 tools (option of up to 300 tools with PC)


Downloads Downloads:

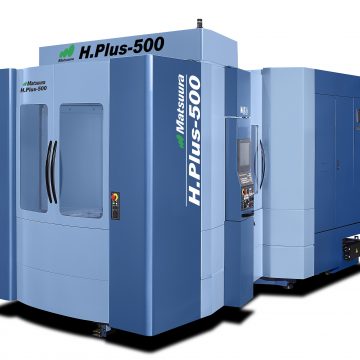

H.Plus-500 FS0 image 2
Matsuura H.Plus-500 Horizontal Machining Centre

  • Increased work size over H.Plus-504
  • X-800mm, Y-800mm, Z-800mm
  • Standard 60 tools (option of up to 245 tools with PC)


Downloads Downloads:
H.Plus-630 FH0 image 1
Matsuura H.Plus-630 Horizontal Machining Centre
  • 4 axis machining
  • High torque, high speed spindle
  • Standard 2 pallets (option of 6 with Floor Pallet)
  • X-1050mm, Y-920mm, Z-990mm
  • Rapid traverse rate 60 m/min
  • Loading capacity 1200kg
  • 24 month spindle warranty
  • Standard 60 tools (option of up to 245 tools with PC)


Downloads Downloads:
Matsuura H.Plus-800 Horizontal Machining Centre
  • 4 axis machining
  • High torque, high speed spindle
  • Increased work surface over H.Plus-630
  • Standard 2 pallets (option of 6 with Floor Pallet)
  • X-1050mm, Y-920mm, Z-990mm
  • Rapid traverse rate 60 m/min
  • Loading capacity 1100kg
  • 24 month spindle warranty
  • Standard 60 tools (option of up to 245 tools with PC)
