Ecoclean EcoCvelox

The EcoCvelox was awarded gold in the category “Machines & Engineering” in the German Innovation Awards 2020. Decisive factors were the evaluation criteria on innovation level, technical quality and function, user benefit as well as cost-efficiency.

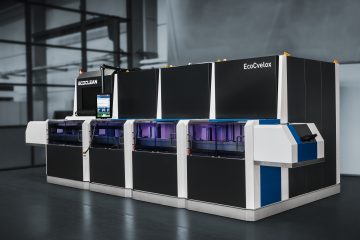

With a completely new system concept EcoCvelox offers a highly flexible, modular solution. This provides for cost-efficient, high-pressure waterjet deburring and cleaning in a single procedure.


EcoCvelox Deburring Cleaning System

Reproducibly deburred and cleaned parts are crucial for the quality of subsequent processes such as
bonding, sealing and assembly. As well as for perfect product function.

Key features:
• Combined high-pressure waterjet deburring with different low-pressure cleaning processes
• Compact system with integrated highly dynamic linear transport system
• Individually configurable and process-dependent expandable modules
• For machining components up to 200 x 200 x 200 mm
• Cycle times of only 15 seconds per pallet
• High-pressure waterjet deburring with single spindle or high-pressure turret with up to five different tools
• CAD/CAM interface can be integrated for simple and fast programming of the deburring module
• Component cleaning by means of injection flood washing, spraying, targeted rinsing and ultrasound
• Component drying with high-speed air blowing and/or vacuum drying
• The system can be loaded automatically with a gantry or with a robot as well as manually
• Optionally with one-sided or opposite loading and unloading
