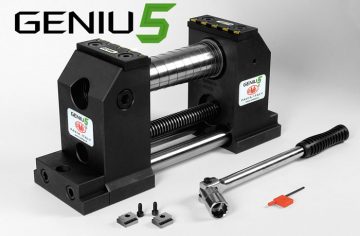

OML Genius High Precision Vice for 5 axis machine tools

Main features are:

  • It is important to note is that the clamping force of up to 40 kN, is generated right where it is needed most.
  • Thanks to its own expanding screw, GENIUS can clamp workpieces up to 200 mm with just one set-up.
  • Unlike the traditional vises, GENIUS clamps the workpieces by means of traction clamping.
  • GENIUS is the first vise designed for the 5 axis-machine tools which can be used for high precision milling operations too.
  • The movement of the jaws is not on a base, but on hardened and grinded shafts. This allows a more quick and accurate positioning of both on the same axis with the centre of the machine tool pallet and can assure a great flexibility and a high cost saving.
GENIUS 3

OML Genius High Precision Vice for 5 axis machine tools


See Brochure below for further information
